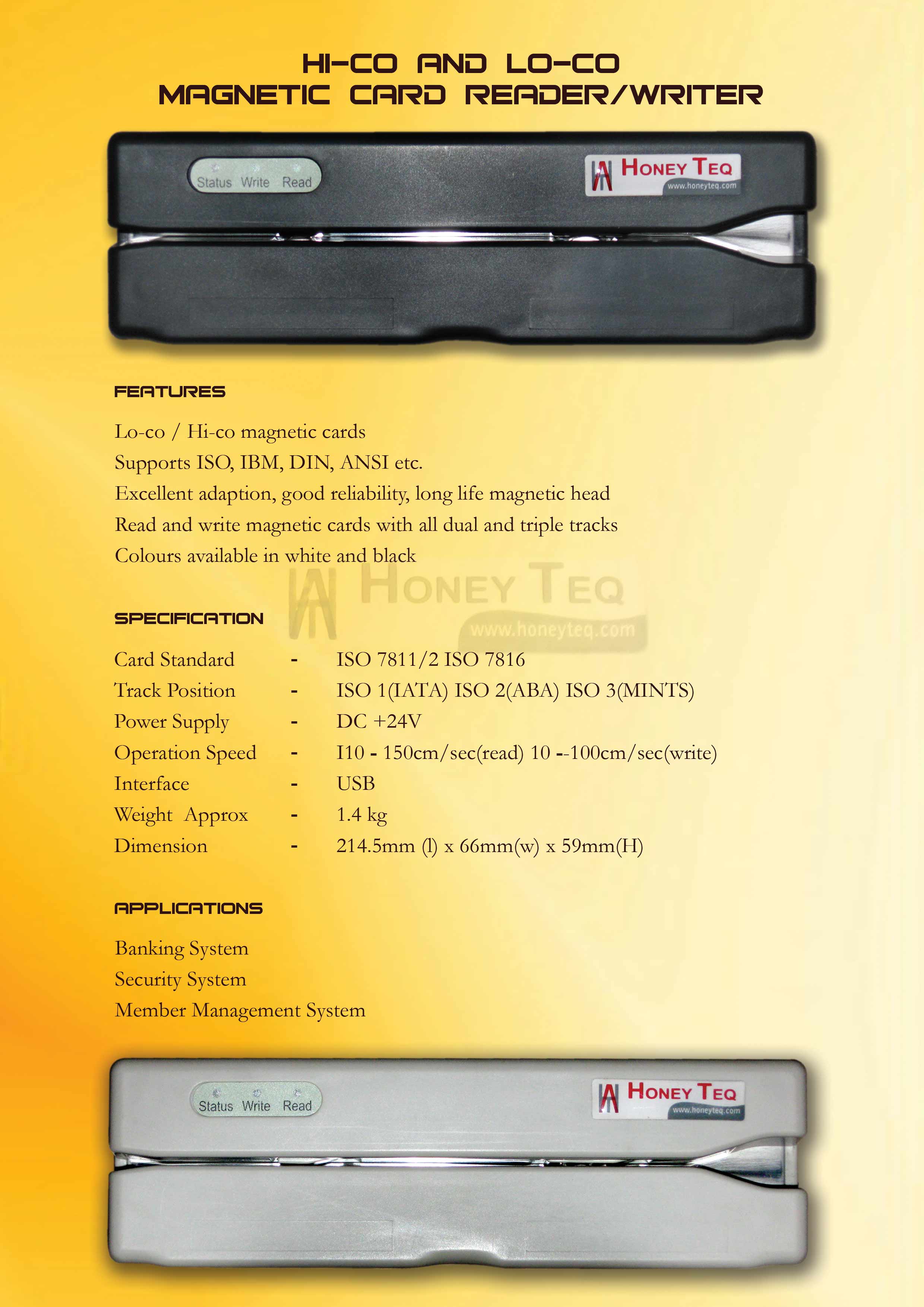

Card Encoder



Features

Card Encoder

Product : Card Encoder
Download Manual : Card Encoder manual - PDF Download Card Encoder manual - JPEG Download

Card Encoder enquiry


  • Lo-co / Hi-co magnetic cards
  • Supports ISO, IBM, DIN, ANSI etc
  • Excellent adaption, good reliability, long life magnetic head
  • Read and write magnetic cards with all dual and triple tracks
  • Colours available in white and black

Specification

  • Card Standard - ISO 7811/2 ISO 7816
  • Track Position - ISO 1(IATA) ISO 2(ABA) ISO 3(MINTS)
  • Power Supply - DC +24V
  • Operation Speed - 10 - 150cm/sec(read) 10 --100cm/sec(write)
  • Interface - USB
  • Weight Approx - 1.4 kg
  • Dimension - 214.5mm (l) x 66mm(w) x 59mm(H)

Applications

  • Banking System
  • Security System
  • Member Management System
